Connectivity Diagrams
Television, AV Receiver, DVD player / DVD Recorder / Blu-ray Disc player (HDMI or Component)

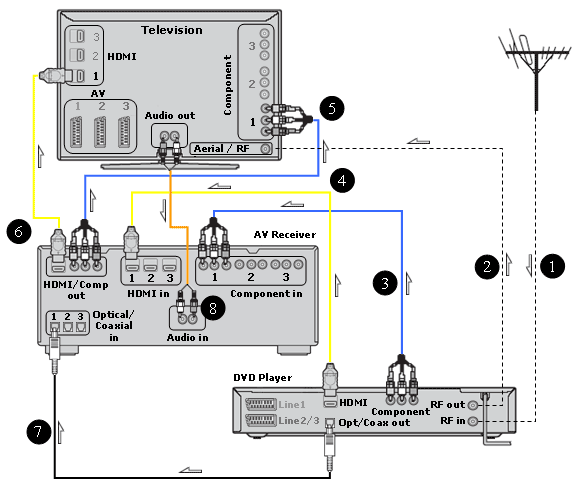

The below diagram shows the most common connections for your configuration. For each connection type, a colour is used to make the diagram easier to understand. More information on connection types can be found here. Choose your preferred type of connection or quality level from the diagram below, but remember that when using component connection (indicated by the blue colour) you also need to connect an RCA Stereo Cable, or a Digital Coaxial cable, or an Optical cable to your television set or AV receiver to output sound, as component cable does not transmit sound.
Cables
 | HDMI Cable |
 | Component Cable |
 | SCART Cable |
 | Stereo Cable |
 | RF Cable |
Connections
- RF cable (aerial), which carries the analogue signal to your DVD player / Recorder
- RF cable, which carries the analogue signal to your television
- Component, cable which carries the analogue video signal of your DVD player / DVD Recorder / Blu-ray Disc player to your AV Receiver
- HDMI cable, which carries the digital video and audio signals of your DVD player / DVD Recorder / Blu-ray Disc player to your AV Receiver
- Component cable, which allows you to watch analogue video signals output from your AV Receiver
- HDMI cable, which allows you to watch digital video signals output from your Av Receiver
- Optical or Digital coaxial cable, which carries the digital audio signal of your DVD player / DVD Recorder / Blu-ray Disc player to your AV Receiver (use this cable in conjunction with a Component video cable)
- RCA Stereo cable, which carries sound output from your Television to your AV Receiver
To Use
- To watch your DVD player / DVD Recorder / Blu-ray Disc player using the HDMI or Component connection type:
- Turn on your Television and DVD player / DVD Recorder / Blu-ray Disc player
- Turn on your AV Receiver
- Select the proper input on your AV Receiver (Please refer to your AV Receiver manual)
- Select the proper input on your Television by using the input select button
on your Television remote (please refer to your television manual to know which one of your television's AV input is dedicated to the corresponding HDMI or Component input)
- To record on your Video Cassette Recorder or DVD player/Recorder, follow the recording instructions in your Video Cassette Recorder and DVD player/Recorder manuals
Disclaimer
Devices with SCART may not be available in your area.
